Made in Germany since 1962

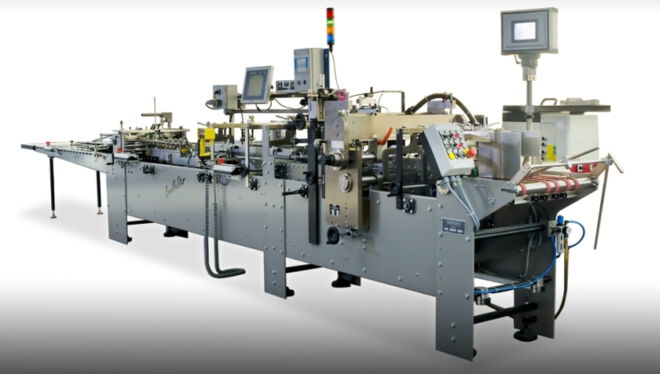

BrailleStar

Folder-Gluer
for efficient converting of pharmaceutical cartons

Key Features

  • The ideal folding box gluing machine to manufacture folding boxes with Braille relief dots for small and medium sized production
  • Low space requirements
  • Durable design
  • Maintenance-free drive
  • Easy format changes
  • Ideal for crash lock boxes due to pre-break of crease 1+3
  • High production output
  • Low maintenance costs
  • Designed for multi-shift operation

Highlights



Standard Equipment

  • Braille-station for embossing Braille relief dots
  • Feeder with vibrating device
  • Infinitely adjustable distance between carton blanks
  • Pre-breaking crease 1+3
  • Bottom disc glue unit
  • Electronic counter with digital display, including preset counter
  • Delivery with kick-out device
  • Drying and press section synchronised with machine speed, can be controlled separately
  • Belt speed 150 m/min


Special Equipments

  • Crash lock bottom device
  • Upper nozzle gluing unit
  • Code reader, glue line detector

Unusual blank formats and special board qualities will be checked by us. Please avoid numerous extreme dimensions in one cardboard blank.



Braille Station

Braille Station

Window styles

Technical Specifications

Output150 m/min
Driving powerapprox. 9,5 kW
Power supply400 V/50 Hz or 60 Hz
Power supplyStraight line
Crash lock bottom
Space requirementsapprox. 8000 x 2000 mm
Weightapprox. 1700 kg
