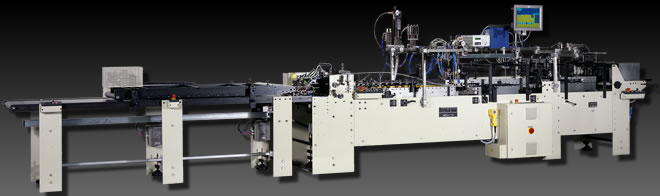

MediaStar

Folding Box Gluing Machine for CD/DVD-Sleeves

Key Features

The machine produces CD-/DVD-sleeves out of carton blanks. Also complicated blanks are precisely folded and glued in one single operation.

Highlights



Easy operation and function control

Practical systems for control and adjustments facilitate the perfect handling of the machine.

  • Trombone section with optical counter
  • Marking device
  • Optical control of shingle stream switching the pressure belt on and off.
  • Pressure belt is equipped with its own drive
  • Display for production speed, counter, pre-setting of marking mechanism
  • Feeder driven by independent drive
  • Potentiometer for stepless speed control


Feeder with vibrating device

The feeder for the blanks is optimally adjustable. The distance between the single blanks is adjustable by means of a separated drive.

  • Vibrating device
  • Chromed guides reduce friction effects
  • Feeder driven by independent drive


Pre-brake of crease I und III

  • Vertical adjustment of the upper pressing guide with screw thread and locking lever
  • Width adjustment with crank handle and spindles


Folding station with chromed knife guides

  • Guidances running in ball bearings to reduce friction
  • Width adjustment with crank handle and spindles


Media-Section with flexible expandabilities

The device can produce special CD-, DVD- or slipcase boxes. Further options can be incorporated on request.



Gluing unit

Easy access to the glue station for easy cleaning and setting. On request hot or cold glue systems can be installed onto the machine.

  • Bottom disc glue unit, glue scraper and glue container
  • Easy adjustable glue disc with scraper

Window styles


Gallery

Technical Specifications

 MediaStar 620
Running Speed180 m/Min.
Box Formatmin. width
max. width
min. length
max. length
60 mm
520/620 mm
50 mm
400 mm (+special formats)
Carton Weight 200-400 g/m2
Drivemaintainance free , drive belt
Power supplyAC400V 50/60Hz
Space requirements 6500 x 1200 mm
Weight approx. 1300 kg
The use of some special accessories requires compressed air supply of 6 bar.
