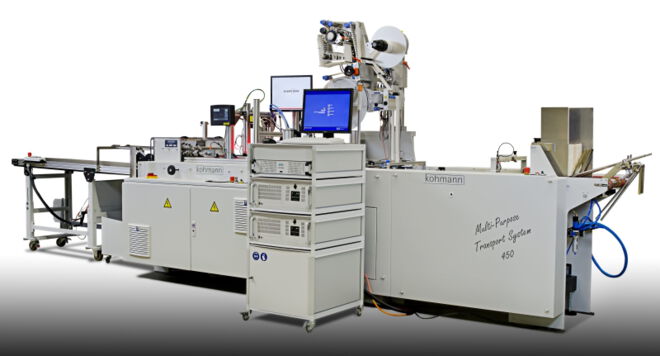

Multi-purpose transport system MPT

for inkjet, labelling and braille applications
- ideal for implementing track and trace systems for packaging material

Necessary

Track and trace systems for packaging material, i.e. in the pharmaceutical industry, are getting more and more important. Not only can they help in controlling the whole supply chain, they are also used to prevent and detect counterfeiting. With our multi-purpose transport system you are able to include inkjet and labelling as well as braille applications in your manufacturing process without problems. The equipment of all well-known manufacturers can be installed on the available interfaces.

Highlights



Specifications

  • MPT 450 (one lane) or MPT 600 (one or two lane version)
  • Belt feeder with separate motor
  • Side register alignment section
  • Suction belt section for inkjet, labelling or braille applications with control unit
  • Ejector unit for faulty blanks
  • Delivery in shingle-type with non-stop-control
  • Belt speed depending on application


Technical data

  • max. blank width:
    • MPT 450: 450mm
    • MPT 600: 620mm
  • max. blank length: 500mm
  • dimensions of the machine:
    • length (depending on delivery version)
      • MPT 450: 5600 to 6800mm
      • MPT 600: 6000 to 8000mm
    • width
      • MPT 450: approx. 1200mm
      • MPT 600: approx. 1500mm
